In the busy world of maritime operations, safety and durability are always top priorities. Whether it's a small harbor or a major shipping terminal, ports must withstand the impact of vessels docking repeatedly every day. One of the most critical components in ensuring this safety is the marine fender system. While fenders are widely recognized for their role in absorbing the kinetic energy of berthing ships, an equally important but often overlooked component is the frontal frame. This article will explore the purpose, function, design, materials, and benefits of frontal frames in marine fender systems. By the end, you'll understand why they are a vital part of modern port infrastructure and how manufacturers like China Marine Rubber (Qingdao) Industrial Co., Ltd. are helping ports operate safely and efficiently.

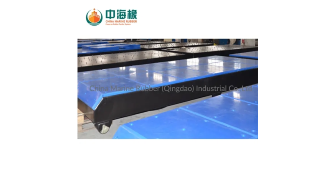

A frontal frame, also known as a fender panel, is a large, flat structure typically mounted on the outer surface of a fender system. It sits between the ship’s hull and the energy-absorbing part of the fender—usually a rubber unit like a cone fender, cell fender, or cylindrical fender.
Its job is simple but crucial: it spreads the reaction force generated during vessel contact over a larger surface area. This reduces stress on both the ship’s hull and the fender itself. Without a frontal frame, the concentrated force of impact might damage the vessel or deform the fender unevenly, shortening its lifespan.
To fully appreciate the role of a frontal frame, it's helpful to think of the marine fender system as a team:
The rubber fender acts as the muscle, absorbing energy during impact.
The frontal frame is the shield, distributing the impact force evenly and protecting both the fender and the vessel.
The mounting system ensures everything stays in place, anchored to the dock or quay wall.
Let’s look at the specific reasons why frontal frames are indispensable in marine fender systems:
Modern vessels are expensive and often carry sensitive cargo or passengers. A direct hit from a ship against a concentrated point of a fender can cause dents, paint damage, or even hull deformation. Frontal frames reduce the risk of such damage by offering a wide, flat contact surface that prevents point loading.
When a vessel docks, the energy generated from its forward momentum must be safely absorbed. Frontal frames distribute this energy over a larger area of the rubber fender, helping the system work more efficiently and safely.
Without a frontal frame, the energy from berthing is concentrated on a small section of the fender, which may cause it to compress beyond its design limit. Over time, this can lead to cracking, fatigue, or complete failure. Frontal frames ensure the load is evenly applied, extending the fender’s lifespan.
As ships grow in size and weight, the berthing forces they generate also increase. Frontal frames are especially important for accommodating oil tankers, bulk carriers, and large container vessels, which require a larger fender contact surface and higher energy absorption.
Frontal frames are typically made from strong, corrosion-resistant materials. Depending on the project requirements, they may include:
The backbone of a frontal frame is often a welded steel structure. This structure gives the panel its strength and rigidity. Structural-grade steel is used, and surface coatings such as hot-dip galvanizing, epoxy painting, or both are applied to prevent rust and corrosion in the harsh marine environment.
Attached to the surface of the frontal frame are UHMW-PE pads (Ultra High Molecular Weight Polyethylene). These white or colored plastic pads allow the vessel’s hull to slide smoothly along the panel during tidal movement or minor shifts, reducing friction and preventing paint damage to the ship.
In some designs, additional rubber bumpers or buffers are attached to the frame to absorb extra energy and reduce noise during contact.
The frontal frame is typically connected to the rubber fender using bolts, brackets, and hinges. It must be securely anchored to maintain alignment and ensure that it transfers energy effectively.
When designing a frontal frame, several key factors must be considered to ensure the fender system functions properly:
The size of the frontal frame must be large enough to distribute the expected loads but not so large that it adds unnecessary weight or cost. The shape—whether square, rectangular, or customized—must match the type of fender and vessel being served.
Larger panels may include multiple UHMW-PE pads to maintain even surface contact with the hull. The thickness and layout of these pads depend on the ship type and docking angle.
Since frontal frames are constantly exposed to saltwater, temperature fluctuations, and wave impact, corrosion protection is a top priority. Galvanized steel and marine-grade coatings are often used.
Good design allows for vertical vessel movement due to tides or wave action. Frames may include guide systems or articulation points to accommodate this motion safely.
Frontal frames are used in a variety of marine settings, each with unique demands:
At oil jetties and LNG docks, safety is paramount. Frontal frames help protect both the fender and the vessel during berthing, which often involves large, heavy tankers.
With container ships getting larger, fenders with strong frontal frames ensure that energy is absorbed without damaging the dock or the hull.
Passenger vessels require gentle docking to avoid vibrations or damage to sensitive areas. Frontal frames with low-friction pads ensure smooth berthing.
Military vessels may dock quickly or in difficult weather conditions. Frontal frames reduce the risk of damage to high-value naval ships and infrastructure.
Ferry operations involve frequent docking. Frontal frames help extend the lifespan of fenders under high use.
Frontal frames are designed for durability but still require regular inspection and maintenance:
Visual Checks: Look for signs of rust, cracked pads, or bent frame sections.
Bolt Tightening: Ensure all fasteners are secure and corrosion-free.
Pad Replacement: Worn UHMW-PE pads can be easily replaced.
Coating Reapplication: Paint or anti-corrosion coating may need to be reapplied after several years.
Well-maintained frontal frames can last 15 to 20 years or more, depending on conditions.
Frontal frames may not be the most visible component in a marine fender system, but their impact is undeniable. They help distribute energy, protect valuable vessels, and increase the life and efficiency of the entire berthing system. As ports grow and ship sizes increase, the demand for high-performance, low-maintenance fender systems—including durable frontal frames—will only continue to rise.
