Rubber fenders, also known as marine fenders or dock bumpers, are critical components in the marine industry. Their primary role is to absorb the kinetic energy of a vessel berthing against a jetty, quay wall, or another vessel, while minimizing damage to both the vessel and the docking structure. Without these protective devices, the impact forces during berthing operations could lead to serious structural damage, safety hazards, and costly repairs.
Rubber fenders are made from high-quality synthetic rubber compounds that offer high resistance to wear, corrosion, and weather conditions. These fenders come in various shapes, sizes, and configurations to suit different berthing conditions, vessel types, and environmental factors. In this article, we’ll explore the different types of rubber fenders commonly used in marine environments and examine their specific applications in detail.
Description:
D-type rubber fenders are among the most common and widely used fender types. They are shaped like the letter "D" when viewed in cross-section. These fenders are typically mounted directly onto the surface of a quay wall, dock, or vessel hull using bolts and flat steel plates.
Features:
Simple design
Easy installation and maintenance
Moderate energy absorption capacity
Cost-effective for smaller applications
Applications:
D-type fenders are ideal for small to medium-sized vessels, including tugboats, workboats, and fishing boats. They are commonly used on piers, small jetties, and along the sides of service vessels. Due to their compact shape and adaptability, they are also used on inland waterways and canals where space is limited.
Description:
Cylindrical fenders have a circular cross-section and were among the earliest types of marine fenders developed. They offer excellent energy absorption and are highly resilient under repeated impact. These fenders can be installed horizontally, vertically, or diagonally, depending on the specific application.
Features:
High energy absorption capacity
Can be manufactured in long continuous lengths
Simple structure, suitable for curved berthing fronts
Can be mounted using chains, ropes, or brackets
Applications:
Cylindrical fenders are often used in locations where large vessels dock, such as oil terminals, container ports, and naval facilities. They are especially suitable for berthing structures with varying heights or curved shapes. They are also commonly used on tugboats and other vessels that require a high degree of maneuverability and repeated berthing.
Description:

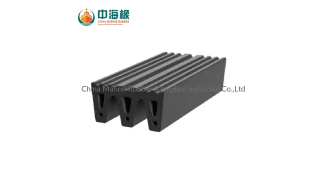

Arch fenders have a simple but effective V-shaped or arch-shaped profile. They are known for their strong structure and excellent shear resistance. The design allows them to absorb impact forces efficiently while maintaining their shape and durability over time.
Features:
High performance in energy absorption
Compact and lightweight design
Long service life with low maintenance
Resistant to aging and harsh weather conditions
Applications:
Arch fenders are widely used in ports and harbors for berthing medium to large vessels. Their compact design makes them ideal for areas with limited installation space. They are commonly found on quay walls, ferry terminals, and cargo handling facilities where reliable and durable fender systems are essential.
Description:
Cone fenders are an advanced type of fender with a conical body. Their shape offers excellent stability and very high energy absorption relative to their size. The wide base and narrow top design help distribute loads evenly and reduce stress on the mounting structure.
Features:
Outstanding energy absorption
High deflection capability
Stable performance under heavy loads
Suitable for a wide range of tides and vessel sizes
Applications:
Cone fenders are commonly used in large commercial ports where tankers, cruise ships, and cargo vessels operate. Their ability to handle large impact forces makes them suitable for heavy-duty berthing applications. They are especially effective in locations with high tidal variations and where vessels of different sizes share the same docking infrastructure.
Description:
Cell fenders are one of the most efficient fender types in terms of energy absorption per unit weight. They consist of a large hollow cylindrical body with flanges at both ends. These fenders are usually paired with a frontal panel and a face pad made of ultra-high molecular weight polyethylene (UHMW-PE) to reduce friction during berthing.
Features:
Excellent energy absorption with low reaction force
Strong structure with uniform stress distribution
High durability and long operational life
Suitable for large tidal movements
Applications:
Cell fenders are often used in large port terminals and oil berths. They are especially suitable for handling large container ships, bulk carriers, and cruise liners. The combination of cell fender and frontal panel allows for smooth and safe berthing, reducing wear and tear on the vessel hull and the fender system itself.
Description:
Pneumatic fenders are inflated with air and float on the water surface. They have a soft, compressible body made from layers of synthetic cord-reinforced rubber. Often referred to as Yokohama fenders, they are extremely versatile and can be deployed quickly for temporary or emergency docking operations.
Features:
High energy absorption with low reaction force
Can be used in various weather and tidal conditions
No permanent installation required
Lightweight and portable
Applications:
Pneumatic fenders are ideal for ship-to-ship transfers, emergency berthing, and temporary docking situations. They are widely used by naval fleets, offshore platforms, and oil tankers. Due to their flexibility, they are especially useful during salvage operations and military logistics where mobility and adaptability are crucial.
Description:
Foam-filled fenders are a solid alternative to pneumatic fenders. Instead of using air, these fenders have a core made of closed-cell foam covered with a tough polyurethane skin. This makes them highly durable and able to withstand punctures without losing performance.
Features:
Durable and puncture-resistant
Works even if the outer skin is damaged
High energy absorption and low maintenance
Suitable for long-term deployment
Applications:
Foam-filled fenders are commonly used in high-traffic port areas, ship-to-ship operations, and offshore platforms. Their rugged design makes them suitable for harsh marine environments. They are also preferred in locations where frequent berthing and unberthing take place and reliability is critical.
Description:
Square fenders have a simple, square cross-section. They are generally used in applications similar to D-type fenders but provide more contact area and energy absorption capacity. They can be mounted with or without a frontal face panel depending on the requirement.
Features:
Easy to cut and install in various lengths
Higher contact area compared to D-type fenders
Moderate to high energy absorption
Suitable for light to medium-duty applications
Applications:
Square rubber fenders are commonly used in small ports, loading docks, and along the sides of vessels. They provide effective protection in low-speed berthing environments and are suitable for facilities where vessels of uniform size dock regularly.
Selecting the appropriate rubber fender depends on several key factors:
Type and size of vessel: Larger vessels require fenders with higher energy absorption and better resilience.
Berthing structure: The shape, material, and strength of the quay wall or jetty influence fender type and mounting method.
Berthing angle and velocity: Higher impact angles and speeds demand more robust fender systems.
Tidal variations: Floating fenders or those with larger deflection capabilities perform better in regions with high tides.
Environmental conditions: Exposure to UV rays, seawater, ice, or extreme temperatures affects fender selection and material choice.
Rubber fenders are essential for protecting marine structures and vessels during docking operations. From simple D-type and cylindrical fenders to advanced cone and pneumatic types, each design serves a specific function tailored to the berthing needs of different vessels and locations. Understanding the differences in fender types and their applications helps port authorities, engineers, and ship operators make informed decisions that ensure safety, efficiency, and long-term durability.
As ports and marine transportation continue to evolve, the demand for reliable and high-performance fender systems will only grow. Investing in the right type of rubber fender not only safeguards infrastructure but also reduces downtime and repair costs—making it a critical component of modern maritime operations.
