Procuring a marine fendering system involves incredibly high stakes for any facility. Infrastructure safety and long-term project liability hinge entirely on the reliability of the fender's performance data. Subpar or falsified test certificates can easily obscure fatal flaws. They hide poor rubber compounding and weak structural integrity until a disastrous failure occurs. This guide provides marine engineers and procurement teams with a strict, evidence-based framework. You will learn how to accurately evaluate performance test certificates. We will help you ensure the final product meets your exact project specifications. You will also guarantee strict adherence to international compliance standards. Following these steps protects your dock structures from preventable damage. It allows you to operate your berths safely and efficiently.
Verify Traceability: Authentic certificates must link specific performance data (Energy Absorption and Reaction Force) directly to the physical fender's serial numbers and material batch.
Demand PIANC 2002 Compliance: Testing protocols must strictly adhere to PIANC 2002 guidelines, including proper adjustments for temperature, velocity, and angular factors.
Scrutinize the Curves: Look for anomalies in performance curves; identical graphs across different product batches often indicate falsified or copied data.
Mandate Third-Party Authentication: Legitimate commercial verification (CV) tests require oversight and stamping by recognized independent classification societies (e.g., DNV, ABS, Lloyd’s Register).
Accepting unverified test data introduces massive liabilities for your entire project. Test data discrepancies directly cause real-world disasters. If a Cone Fender fails to absorb the specified energy, vessels hit the dock too hard. This leads to severe hull damage. It also causes dangerous structural overloading of the berthing facility. Insurance companies routinely investigate these catastrophic failures. They will void your claims if they discover you accepted fraudulent or unverified test certificates.
You must understand the critical difference between Type Approval and Commercial Verification (CV). Many buyers unfortunately confuse them. Type approval simply proves the manufacturer can make the design in theory. It acts as a baseline engineering qualification. CV testing proves the actual batch you are buying meets all criteria. You cannot rely on Type Approval alone to clear a shipment. You need robust CV tests for your specific order.
Procurement teams must establish clear success criteria early in the project. You should enforce a strict zero-tolerance policy. Never authorize shipment without seeing the baseline testing data. Hold suppliers accountable before products leave their manufacturing facility. This simple step prevents major installation delays. It also secures your legal standing if performance disputes arise later.
Energy Absorption (EA) and Reaction Force (RF) represent the most critical metrics. You must confirm actual test results fall within the standard ±10% tolerance. This tolerance applies strictly to the published rated performance. Verify the test certificate clearly states the specific rubber grade tested. Manufacturers typically use Standard, High, or Super High grades. The certificate must match your purchase order exactly.

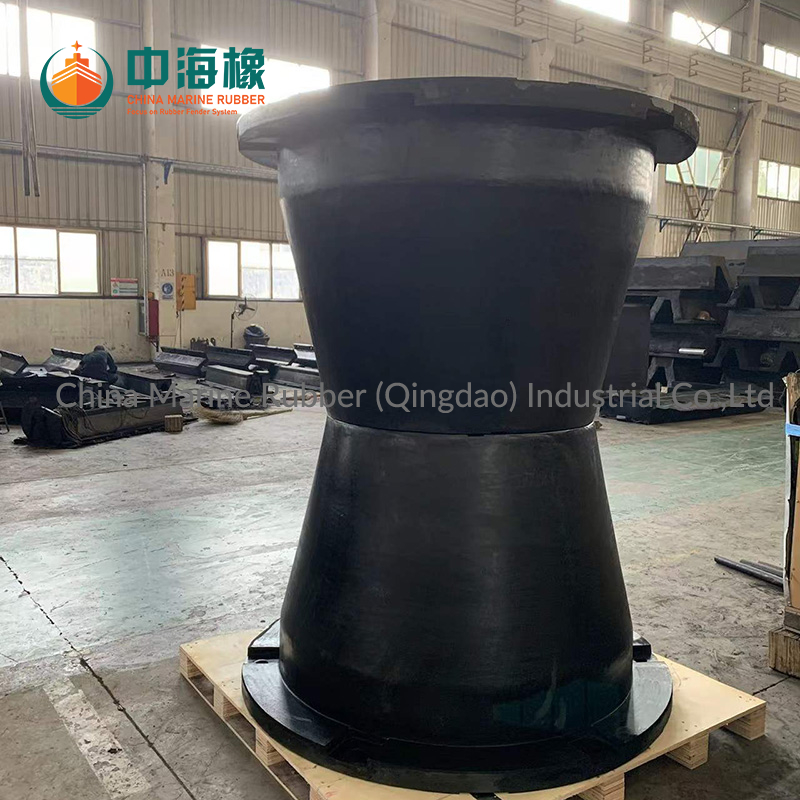

Next, look closely at the deflection parameters documented in the report. Check the maximum deflection reached during the compression test. A proper test pushes the rubber up to its absolute design limit. This limit is typically 70% or 72% for a Super Cone Fender. Stopping the test early hides potential internal tearing. It also obscures late-stage stiffness anomalies occurring near maximum compression.
Finally, evaluate the recovery testing data carefully. Fenders must return to their original shape post-compression. The certificate should assess this vital recovery ability. Good recovery indicates high-quality rubber compounding. It proves the product successfully avoids permanent set. Poor recovery means the unit will fail prematurely under repeated berthing impacts.
Performance Metric | Standard Requirement | What to Verify on Certificate |
|---|---|---|
Energy Absorption (EA) | Within ±10% of rated capacity | Matches specified rubber grade curve |
Reaction Force (RF) | Within ±10% of rated capacity | Does not exceed max allowable hull pressure |
Maximum Deflection | Tested to 70% or 72% | Curve shows no sudden drops or spikes |
Shape Recovery | Returns to near original height | No evidence of permanent set documented |
Apparatus calibration remains a non-negotiable factor in reliable testing. The certificate must list recent calibration dates clearly. These apply to the load cells and displacement transducers. Assessors use these sensitive devices in the press machine. Outdated calibrations render the entire performance test completely invalid.
Correction factors dictate the accuracy of your results. This serves as a vital E-E-A-T check for any supplier.
Temperature Factor (TF): Verify tests note the exact ambient temperature. The laboratory must apply PIANC correction factors. This standardizes the final results to 23°C (73°F).
Velocity Factor (VF): Ensure engineers document strain rates during testing. They must properly convert these rates. This reflects actual berthing impact speeds rather than slow laboratory presses.
Angular compression data is equally important for modern terminal designs. Many projects require angular berthing capabilities to accommodate various vessel types. Standard linear compression tests do not cover this dynamic behavior. Check if the certificate includes specific angular performance test data. Fenders behave much differently under angular loads. You need definitive proof they handle these dynamic forces safely.
Fraudulent reports often share common technical anomalies. You can spot them easily if you know exactly where to look.
Identical Performance Curves: Address the major risk of copy-pasted graphs. Minor variations are a natural outcome of rubber manufacturing. No two batches are perfectly identical. Identical curves across multiple units are a severe red flag. They strongly indicate fabricated or falsified data.
Inconsistent Scaling Factors: Look out for suppliers using scale-model testing. They might test a tiny cone fender instead of the real thing. They then inappropriately extrapolate the data to massive sizes. Full-scale units require proper nonlinear scaling equations. Avoid extrapolated data whenever possible to ensure safety.
Missing Material Traceability: Certificates must link directly to the rubber batch. You need a direct, unbroken correlation. Connect the mechanical performance test to physical and chemical property tests. Lacking this explicit link breaks the chain of custody.
Do not ignore these warning signs during the review process. A single falsified graph compromises the integrity of the entire shipment. Demand immediate clarification if you spot any of these anomalies.
Trustworthiness requires strict independent verification. You cannot rely solely on the manufacturer's internal quality control. Verify the presence of recognized endorsements on the final documents. Look for official stamps and signatures from reputable third-party inspectors (TPI). These inspectors must be completely independent of the manufacturer. Classification societies like DNV, ABS, or Lloyd’s Register offer reliable, unbiased oversight.
Always check the specific scope of TPI intervention. Did the TPI witness the actual physical compression test? Or did they merely perform a basic document review? The former is absolutely necessary for real commercial confidence. Document reviews only confirm paperwork formatting and basic math. Witnessed tests confirm physical reality and actual product behavior under load.
Digital traceability provides an excellent extra layer of security. Look for modern QR codes printed on the certificate. Search for online verification portals or secure document reference numbers. These digital tools allow you to cross-check validity instantly. You can confirm the certificate directly within the TPI database.
Integrating certificate audits into your supplier shortlisting is crucial. Make this a mandatory pre-qualification requirement for all bidders. Demand sample CV test certificates from previous projects. Do this during the initial RFQ or RFI stage. It helps you gauge supplier transparency and technical capability early on.
Establish strong contractual protections next. Write PIANC-compliant testing directly into the final purchase order. Demand mandatory TPI witnessing in writing before signing anything. Clearly state the penalty for failing to provide these documents. If suppliers refuse these stringent terms, walk away immediately.
Create an actionable evaluation matrix for your team. Use the aforementioned criteria as a strict pass/fail gate. Check tolerances, correction factors, and independent TPI presence. Use this standardized matrix for all vendor selection processes.
Evaluation Criteria | Acceptable (Pass) | Unacceptable (Fail) |
|---|---|---|
Test Standard | Strict PIANC 2002 compliance | Unknown or outdated standards used |
TPI Involvement | Physical test witnessing by DNV/ABS | Document review only or internal QC only |
Correction Factors | TF and VF explicitly calculated | Raw lab data presented without conversion |
Traceability | Serial numbers link to material batch | Generic certificates with no batch numbers |
A cone fender performance test certificate is more than a simple compliance checkbox. It acts as your primary defense against catastrophic marine infrastructure failure. You must evaluate these technical documents rigorously to protect your terminal assets.
Maintain a highly skeptical, evidence-based approach to all documentation. Scrutinize every graph, tolerance, and signature thoroughly. Ask hard questions about their testing methodology. If the supplier cannot clearly explain their testing apparatus, walk away. If they fail to explain correction factors or traceability protocols, disqualify them from the procurement process entirely. Protect your port by demanding only verifiable, third-party authenticated data.
A: No. Type Approval validates the design over a long period. CV testing verifies the specific cone fender units manufactured for your order. Both are required.
A: Rubber stiffness is highly temperature-dependent. A fender tested in a cold factory will appear stiffer (higher Reaction Force) than it will perform in a tropical port, leading to potentially dangerous structural overloads if not corrected to standard baselines.
A: PIANC allows scaled testing under specific, strict conditions, but full-scale testing is heavily preferred for CV tests. If scaled testing is used, the scaling methodology must be explicitly detailed and verified by a third party.
