Marine port infrastructure relies heavily on resilient components to manage massive vessel impacts safely. While the rubber body handles kinetic energy absorption during berthing, the UHMW-PE (Ultra-High Molecular Weight Polyethylene) pad serves as the critical interface. It stands directly between the vessel hull and the steel frontal panel. Specifying the correct pad thickness remains an exact engineering calculation rather than a simple guessing game. Under-specifying thickness leads directly to premature fastener exposure, causing severe hull damage and structural degradation. Conversely, over-specifying inflates project costs and adds unnecessary dead weight to the panel structure. This comprehensive guide outlines the precise engineering criteria and implementation realities for these systems. You will learn how to balance wear life and friction reduction effectively. We will explore standard calculation formulas to determine the optimal facing pad thickness for your marine fender installations.
The Usable Wear Rule: Total pad thickness must account for the required fastener recess depth; only the material above the bolt head is your actual "wear allowance."
Standard Industry Ranges: Most commercial applications utilize 30mm to 50mm pads, while high-frequency or severe-tidal terminals may scale up to 80mm–100mm.
Application-Driven Specs: Ro-Ro terminals and ferry berths require higher wear allowances due to continuous dynamic friction, whereas container terminals with static berthing require less.
Material Quality Matters: Virgin UHMW-PE offers predictable wear rates; utilizing lower-grade or regrind materials invalidates standard wear calculations and accelerates failure.
Marine engineers design berthing structures to absorb massive kinetic energy. They rely heavily on interconnected protective systems. We see this clearly in modern terminal design. The rubber cone fender absorbs the primary impact. It compresses under the heavy load. Next, the steel frontal panel distributes this massive reaction force across a wider surface area. Finally, the UHMW-PE pad provides a highly durable, low-friction sliding surface. This specialized polymer surface typically boasts a dynamic friction coefficient between 0.1 and 0.2. This low friction ensures vessels glide smoothly along the berth face. It prevents the ship from snagging the infrastructure.
Facility managers face a significant business problem regarding friction. Without an adequate sliding surface, shear forces increase drastically during berthing operations. High shear forces threaten the vessel hull directly. They scrape away protective marine paint systems. They can even deform the underlying steel plating. Furthermore, excessive friction jeopardizes the port infrastructure. Huge shear loads transfer directly into the steel panel. From there, they travel into the fender mounting anchors. These forces can eventually tear the anchor bolts right out of the concrete quay wall. A properly specified UHMW-PE pad mitigates this destructive chain reaction.
Specifying an inadequate thickness invites disastrous failure modes. Constant friction steadily shaves away the polymer material year after year. If engineers miscalculate the wear rate, the pad will wear through prematurely. This scenario leads to catastrophic steel-on-steel contact. The vessel hull scrapes directly against the bare steel frontal panel. This extreme friction generates sparks in hazardous environments. It heavily damages the ship hull. It also destroys the expensive steel frontal panel. Port authorities must then halt operations immediately. They face costly emergency repairs and severe operational downtime.
Port engineers do not guess pad dimensions. They rely on established industry guidelines to determine precise material requirements. The baseline calculation used by marine professionals is straightforward. Total Thickness equals the Minimum Structural Base plus the Required Wear Allowance. The minimum structural base primarily accounts for the fastener recess. The wear allowance represents the sacrificial material expected to abrade away over the product lifecycle. You must add these two figures together to find your target specification.
You calculate the expected material loss per year carefully. Engineers measure this loss in millimeters per year (mm/year). This metric depends on several crucial variables. Berthing frequency represents the primary driver. Vessel pressure against the panel also plays a major role. Local abrasive factors heavily influence the final number. Suspended sand or silt in the water acts like sandpaper against the plastic. Once you determine the annual wear rate, you multiply it by the target maintenance lifecycle. If you lose 2mm per year and want a 15-year lifespan, your required wear allowance is 30mm.
Many procurement teams misunderstand how thickness translates to longevity. They assume a 40mm pad provides 40mm of usable wear. This assumption is dangerously incorrect. The pad must attach to the steel panel securely. We use heavy-duty bolts or studs for this task. These mounting bolts require deep countersinks. The bolt head must sit well beneath the sliding surface. If a mounting bolt requires a 25mm countersink, you lose that depth immediately. In a 40mm pad, your actual wear allowance is only 15mm. Once the pad wears down 15mm, the steel bolt head becomes exposed.
Terminal Type | Annual Wear Rate (Est.) | Target Lifespan | Required Wear Allowance | Fastener Recess Base | Recommended Total Thickness |
|---|---|---|---|---|---|
Static Container Port | 1.0 mm/year | 15 Years | 15 mm | 25 mm | 40 mm |
Busy Ferry Terminal | 2.5 mm/year | 10 Years | 25 mm | 25 mm | 50 mm |
High-Silt River Berth | 3.5 mm/year | 12 Years | 42 mm | 30 mm | 75 mm |
Severe Tidal Ro-Ro | 4.0 mm/year | 15 Years | 60 mm | 30 mm | 90 mm |
Different vessels exert vastly different forces on marine infrastructure. We must classify the terminal type before specifying pad materials.
High-Frequency Terminals: Ferries and Ro-Ro vessels dock multiple times every day. This creates continuous sliding friction. These applications require maximum wear allowances. Engineers often specify pads exceeding 50mm for these busy environments.
Heavy Cargo and Tankers: These massive ships dock less frequently. However, they generate immense point loads upon impact. For these vessels, we focus on impact resilience. Extreme wear depth is secondary to structural integrity.

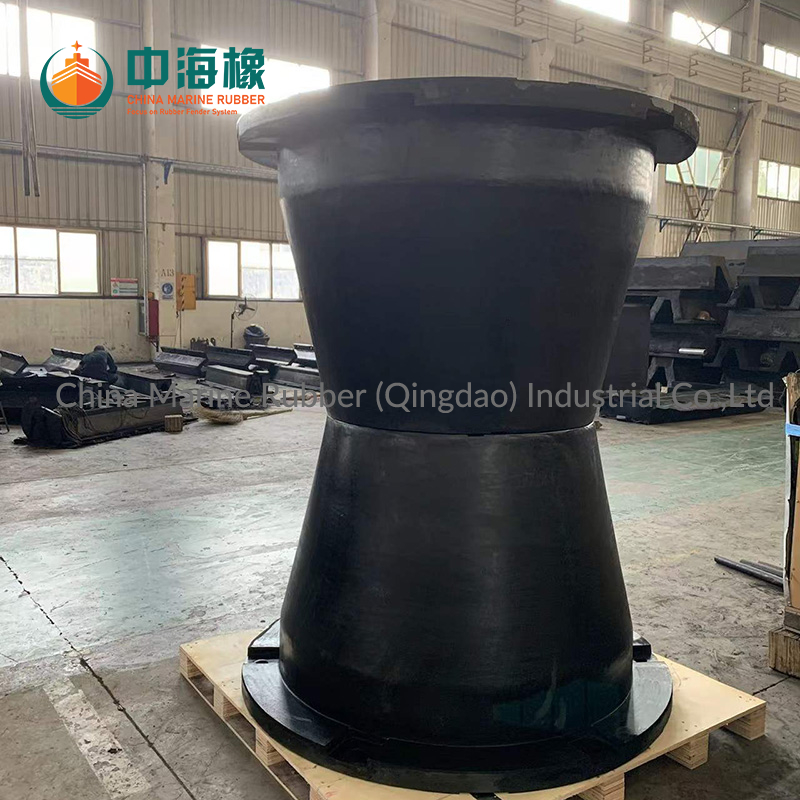

Water levels rarely remain static. Extreme tidal variations fundamentally change how wear occurs. When a ship moors at a berth, it moves constantly. The vessel slides vertically against the Super Cone Fender panel as the tide rises and falls. We call this phenomenon "moored wear." This vertical grinding exponentially increases the daily wear rate compared to static-level ports. Terminals experiencing massive tidal shifts require significantly thicker UHMW-PE pads to survive their intended lifecycles.
You must carefully assess environmental contaminants in the water. Clean seawater allows plastics to last a long time. However, many ports operate in harsh conditions. High-silt rivers carry millions of tiny abrasive particles. These particles lodge between the hull and the pad. They act exactly like a grinding compound. Furthermore, ports prone to winter icing face severe challenges. Ice flows scrape violently against the protective panels. These harsh environments require much thicker pads to achieve the same design life as clean-water installations.
Proper hardware implementation guarantees system stability. Installers secure these heavy plastic sheets using rugged stainless steel hardware. The studs, nuts, and washers must sit completely recessed inside the pad. The CNC machining process creates precise counter-bores for this exact purpose. We must highlight the severe risk of bolt-head protrusion. If the base structural thickness is compromised, the bolts sit too close to the surface. Minor wear quickly exposes the metal hardware. This destroys the low-friction sliding surface entirely.
Square edges create massive operational hazards. We must chamfer the edges of every UHMW-PE pad. This beveling process typically angles the perimeter between 20 and 45 degrees. Thicker pads naturally require much larger chamfers. Ships frequently possess protruding beltings or rub rails along their exterior hulls. If a thick pad features a sharp edge, a descending vessel belting will easily catch it. The immense weight of the ship will shear the plastic sheet right off the steel panel.
Engineers must acknowledge the physical weight trade-off. Thicker pads add significant dead weight to the steel panel assembly. UHMW-PE is dense material. Adding an extra 30mm of thickness across a massive frontal panel adds hundreds of kilograms. The suspension chains supporting the system must carry this burden. If you specify exceptionally thick pads, you may require structural adjustments. You might need heavier-duty chains and stronger shackles to support the upgraded Cone Fender configuration safely.
Verify all CNC machined bolt holes align perfectly with the steel panel grid.
Ensure counter-bores provide at least 5mm clearance above the tightened washer face.
Apply anti-seize compounds to stainless steel studs to prevent galling during future maintenance.
Inspect the chamfer angles to ensure they meet the specific berthing angles of expected vessels.
Torque all fastening nuts to the manufacturer's precise mechanical specifications.
Port authorities face a clear decision framework regarding capital expenditure. Is it more cost-effective to invest heavily upfront? Spending 20% more initially for a 50mm pad might guarantee a 15-year operational life. Alternatively, you could purchase a standard 30mm pad for less money today. However, this cheaper option requires a scheduled replacement around year seven. Replacing panels requires significant labor. It also forces expensive operational downtime. Decision-makers must balance initial capital output against future maintenance burdens.

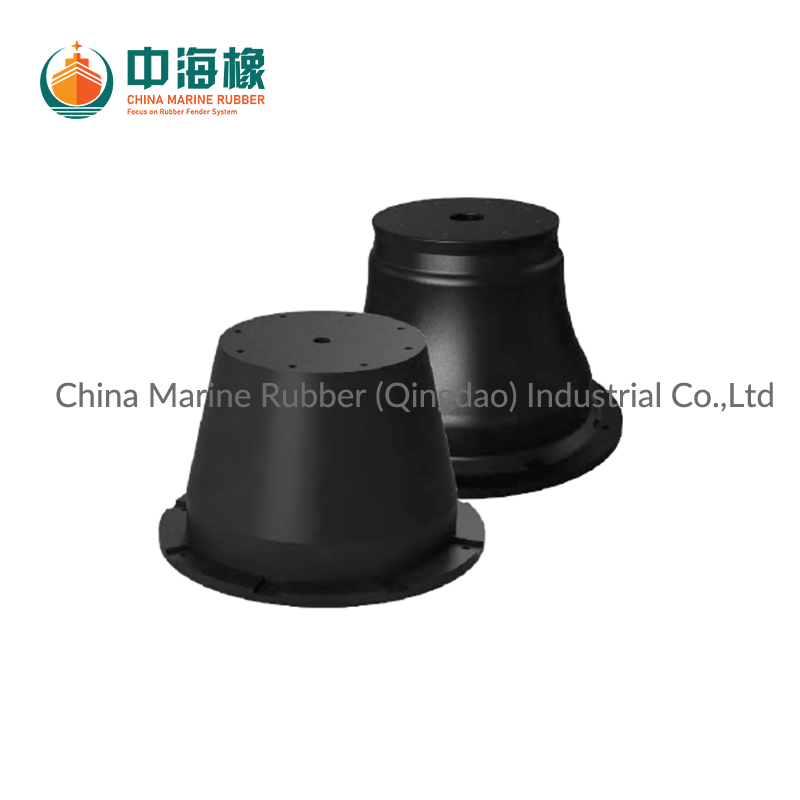

We caution strongly against arbitrarily over-engineering the system. Some managers request 100mm pads "just to be safe." We frame this as an unnecessary capital drain. Every component in a marine terminal possesses a specific lifespan. The underlying steel panel will eventually succumb to marine corrosion. The internal rubber core will eventually experience fatigue. If your underlying rubber Super Cone Fender only has a 15-year remaining lifespan, installing a 30-year pad wastes valuable capital.
Procurement teams must evaluate manufacturers holistically. We strongly recommend looking beyond the base pad price. A cheaper pad often indicates compromised material quality. Assess the vendor's ability to provide verified friction-testing data. Demand evidence of precise CNC machining capabilities for complex bolt holes. Most importantly, demand certified virgin material composition. Virgin UHMW-PE contains molecular weights exceeding 5 million g/mol. Lower-grade or regrind plastics wear out inconsistently. They fail prematurely and inflate long-term maintenance cycles.
Specifying the correct UHMW-PE pad thickness demands a calculated balance of fastener geometry, environmental wear factors, and proactive maintenance strategy. You cannot rely on guesswork when protecting high-value marine assets. Total thickness must always account for deep fastener recesses to ensure a realistic usable wear allowance. High-frequency terminals and extreme tidal zones absolutely require thicker materials to survive constant abrasion. Conversely, static ports can optimize capital by selecting standard profiles. We strongly advise decision-makers to move beyond generic catalog recommendations. You should demand site-specific wear calculations from your chosen fender manufacturer. This rigorous engineering approach ensures optimal asset protection, predictable maintenance cycles, and exceptional operational efficiency.
A: Typically 30mm is the absolute minimum standard. This depth safely accommodates standard bolt recesses while leaving a functional, albeit small, wear allowance for the vessel to slide against over time.
A: Color does not affect thickness. While black (UV stabilized) and yellow (high visibility) are standard, ensure the pigment additives do not compromise the molecular weight and wear resistance of the virgin material.
A: Yes. Pads are designed as sacrificial, replaceable wear parts. Assuming the steel panel remains unwarped and corrosion-free, new pads can be bolted directly onto the existing port infrastructure.
A: Because a Super Cone Fender can safely accommodate higher angular berthing (up to 10-20 degrees) without severe performance loss, the pad may experience more localized edge loading. This makes proper edge chamfering and adequate thickness absolutely critical during the system design phase.
