What are the different types of fenders? It is a critical question for port infrastructure. Marine engineers face massive challenges in safeguarding multi-million dollar vessels and concrete berths. Selecting the incorrect fender system causes severe structural damage or accelerated wear. Modern vessel growth shifts the industry standard toward highly efficient solutions. In this comprehensive guide, you will learn about the primary fender types and why the cone fender stands out.
● Marine fenders are essential infrastructure components that protect both vessels and berths from catastrophic impact forces during mooring.
● Choosing the right fender type depends on specialized factors, including docking environments, tidal variations, and specific hull pressure limits.
● Cone fenders represent the pinnacle of modern engineering, offering unparalleled energy absorption and exceptional stability under angular berthing.
● Solid rubber fenders provide reliable, low-maintenance performance for permanent quays, while pneumatic options excel in mobile ship-to-ship transfers.
● Implementing proper frontal panels with UHMW-PE pads distributes impact loads evenly and protects ship hulls from friction damage.
Marine engineers classify fender systems by their geometry, performance curves, and materials. Every design serves a specific operational purpose on the quay wall.

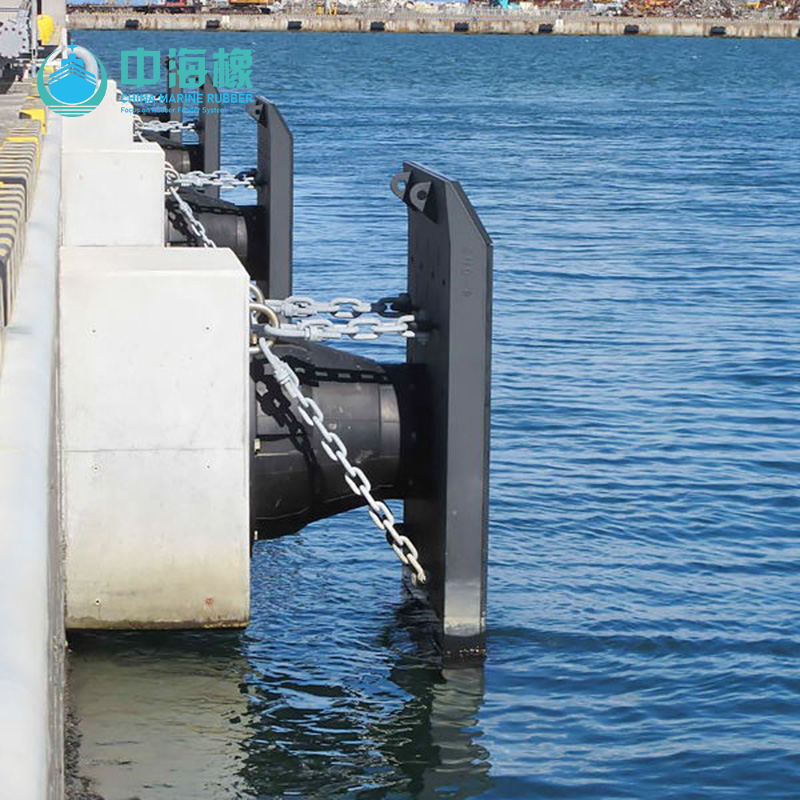

The cone fender represents the latest evolution in solid rubber fender technology. Its unique conical body maintains structural stability even under extreme compression. This geometry allows the rubber to deflect up to 72% of its height without buckling.
When a ship impacts the system, the cone shape distributes stress evenly throughout the base. This design prevents internal shear failure. It delivers exceptional durability in the harshest marine environments.
Note: The conical design ensures that the rubber body does not suffer from premature fatigue, even during frequent and aggressive berthing schedules.
Cell fenders have served as the industry standard for decades. They feature a classic hollow cylindrical shape that excels at handling heavy vertical loads. They provide high energy absorption and low reaction force at their rated deflection.
However, cell systems are more susceptible to shear forces than modern conical designs. They require large, robust structural frames to maintain stability during non-perpendicular vessel approaches.
Arch and V-fenders feature a simple, rugged, one-piece design. They do not utilize separate steel frontal panels. Instead, the rubber arch directly contacts the vessel hull or interfaces with a integrated low-friction pad.
These units are highly cost-effective for small-to-medium berths. Their compact footprint makes them ideal for facilities with restricted mounting space on the quay wall face.
Cylindrical fenders represent one of the oldest and most versatile protection systems. They feature a thick, hollow circular profile. Crew members install them easily using chains or bars.
Ports frequently deploy them to protect multi-user berths, fishing ports, and tugboat bows. They offer progressive load characteristics. This means the reaction force increases smoothly as the vessel compresses the cylinder.
D-series and square fenders provide a low-profile protective barrier. They work perfectly on workboats, pontoons, inland waterways, and small passenger fast-ferries.
Engineers mount them directly to the concrete structure using simple bolts. Their flat back ensures a flush fit against the pier, while the hollow interior absorbs light impacts from smaller moving watercraft.
Pneumatic fenders utilize compressed air inside a heavy-duty rubber envelope to absorb kinetic energy. These floating units adjust naturally to shifting water levels.
They provide excellent protection during ship-to-ship (STS) transfers in open water. They also assist berths that experience extreme tidal variations. Their air cushion distributes the docking impact over a wide hull area, preventing localized point loading.
Tip: Always inspect the internal air pressure of pneumatic systems quarterly to guarantee consistent energy absorption during open-sea operations.
Modern maritime logistics demand larger container vessels and faster turnaround times. Traditional fender geometries often struggle to meet these strict engineering requirements safely.
The primary engineering goal of a fender system is maximizing energy absorption while minimizing the reaction force pushed back onto the quay wall and vessel hull. The cone fender outperforms traditional cell options in this metric.
Fender Type | Maximum Deflection | Relative Energy Absorption | Relative Reaction Force |
Cylindrical | 50% | Low | High |
Traditional Cell | 52.5% | Medium | Medium |
Advanced Cone | 72% | High | Low |
This superior ratio allows port authorities to construct lighter quay walls. It lowers overall civil engineering construction costs significantly.
Vessels rarely approach a berth at a perfect 90-degree angle. High winds, strong currents, and tugboat maneuvers cause ships to strike fenders at steep, irregular angles.
When traditional cell or arch units experience angular compression, their energy absorption drops significantly. The unique geometry of a cone fender system mitigates this issue. It retains its rated performance curves even when berthing angles reach up to 10 degrees.
The wide, stable circular base of the conical design alters how force transmits to the concrete infrastructure. It shifts the mechanical stress away from the anchoring system.
This reduced shear stress prevents mounting bolts from bending or shearing off completely. Consequently, port operators experience lower maintenance expenditures and fewer operational disruptions over a twenty-year service lifespan.
Port designers must balance the trade-offs between fixed solid rubber systems and temporary floating alternatives based on specific site conditions.
Solid rubber variants attach permanently to the face of a concrete jetty or dolphin structure. They provide a predictable, static point of protection for routine commercial docking.
Conversely, floating pneumatic units offer high mobility. Tugboat crews deploy them quickly where permanent infrastructure does not exist, or when a vessel requires extra clearance from a rocky shoreline.
Solid rubber installations represent a true set-and-forget solution. They require basic visual inspections for chain tension and pad wear every twelve months.
Pneumatic units require continuous monitoring. Maintenance teams must check air valves, inflation pressures, and the outer chain-and-tyre net mesh regularly. This mesh prevents sharp objects from puncturing the pressurized rubber bladder.
Fixed rubber systems stay in a single spot on the quay. To handle large ocean tides, engineers must stack multiple units vertically or build massive steel panels that cover the whole tidal zone.
Floating pneumatic fenders move up and down naturally with the tide. They always stay right at the water line between the ship and the pier.
Marine engineering firms use precise mathematical calculations to determine the exact sizing and compound requirements for a project.
Engineers calculate the kinetic energy of an approaching vessel using its displacement mass and berthing velocity. They plot this values against standard manufacturer performance curves.
The goal is ensuring the selected unit absorbs all kinetic energy before reaching its deflection limit. If a fender bottoms out, the remaining force transmits directly into the concrete quay, causing structural cracks.
Every vessel type features a maximum allowable hull pressure rating. Sensitive liquefied natural gas (LNG) carriers feature delicate hulls that cannot withstand concentrated impact forces.
Bulk cargo ships and oil tankers possess rugged steel plating. Designers specify the surface area of the steel frontal panel attached to the rubber body to distribute forces safely below these specific hull thresholds.
Accidents happen during severe storms or sudden mechanical failures. A robust safety factor protects port infrastructure from unexpected over-compression events.
Advanced conical rubber components provide an exceptional safety margin. They compress smoothly beyond their rated limits without experiencing sudden catastrophic buckling or tearing.
Tip: Always design your fender system with at least a 10% safety margin above the calculated maximum vessel berthing energy to account for unexpected weather conditions.
No single design works perfectly across every commercial maritime terminal type. Different operations require distinct performance characteristics.
Container terminals operate around the clock, requiring ultra-fast vessel turnaround times. Roll-on/roll-off (Ro-Ro) vessels create continuous, aggressive friction forces against the berth due to constant vehicle loading.
These sites require low-friction panel systems paired with durable rubber cores. They must withstand rapid, cyclical compressions without overheating or tearing.
Hazardous material transfer points demand absolute safety. A single structural failure can lead to catastrophic environmental damage.
These facilities utilize massive steel frontal frames paired with highly efficient cone fenders. This layout lowers local hull pressures to safe levels, protecting sensitive tanker structures during product transfers.
Cruise facilities prioritize passenger comfort and vessel appearance. Jarring impacts during docking disturb guests and damage premium interior fixtures.
Engineers select smooth-acting rubber systems that compress gently. They pair them with non-marking white ultra-high-molecular-weight polyethylene (UHMW-PE) face pads. These pads prevent ugly black rubber streaks on pristine white cruise ship hulls.
A complete marine fender assembly involves several interconnected mechanical parts working together to handle heavy loads.
Engineers bolt UHMW-PE pads directly to the face of the steel frontal frame. This advanced polymer material features an exceptionally low coefficient of friction.
As a vessel surges and sways alongside the berth due to wave action, the hull slides smoothly against the plastic face. This protects both the ship's paint system and the underlying rubber core from destructive torsional forces.
The steel frontal frame acts as a load distributor between the vessel hull and the rubber body. Fabricators use structural steel plates reinforced with internal stiffener channels.
Engineers coat these steel structures with heavy-duty epoxy paint systems or hot-dip galvanize them. This process provides reliable protection against aggressive saltwater corrosion over decades of service.
Heavy steel frontal frames and UHMW-PE pad assemblies place considerable gravitational weight on rubber components. Engineers deploy specialized chain systems to support these loads.
● Weight Chains: These links support the total dead weight of the steel frontal panel, keeping the rubber body perfectly horizontal.
● Tension Chains: These components prevent the fender system from stretching outward when a departing vessel pulls away from the quay face.
● Shear Chains: These assemblies resist horizontal lateral movements caused by vessels sliding along the berth during mooring maneuvers.
Selecting the right marine protection requires balancing vessel sizes, port designs, and budget restrictions. Upgrading to advanced CMR cone fender systems ensures the best long-term safety, durability, and return on investment.
A: Project selection depends on vessel mass, hull pressure limits, tidal ranges, and your overall quay wall structural capacity.
A: A cone fender system maintains its rated energy absorption during steep angular berthing and provides a superior energy-to-reaction ratio.
A: A solid rubber cone fender requires simple visual inspections for chain tension and pad wear every twelve months.
A: Yes, pairing a cone fender with an oversized steel frontal panel distributes impact forces safely below sensitive hull pressure thresholds.
