Modern mega-vessels carry multi-million dollar cargoes, making safe berthing operations a high-stakes priority. When these massive ships approach concrete dock walls, a single miscalculation can cause catastrophic structural damage. Marine fendering systems serve as the critical line of defense during these high-stress impacts.
In this guide, you will learn why the cone fender represents the pinnacle of modern rubber fender evolution. We will explore how its unique geometric design maximizes energy absorption while protecting port infrastructure and vessel hulls.
● Ultimate Efficiency: Cone fenders deliver the highest energy absorption-to-reaction force ratio of any fender system type available.
● Angular Performance: Their specialized conical shape maintains excellent compression efficiency even at large, oblique berthing angles.
● Enhanced Longevity: Paired with low-friction UHMW-PE frontal panels, these systems minimize hull pressure and withstand severe shear forces.
● Strategic Investment: While initial procurement costs are higher, their 20+ year lifespan significantly reduces long-term port maintenance budgets.

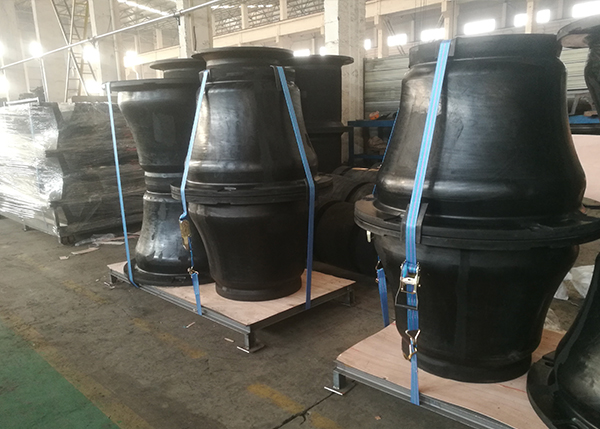

A cone fender features an engineered conical rubber body attached to a circular, steel-reinforced mounting base. Unlike traditional cylindrical or rectangular profiles, its tapered design handles immense compressive loads by distributing internal stress evenly throughout the elastomer structure. This geometric optimization prevents localized material failure, allowing the rubber compound to deflect smoothly under load.
When a ship contacts the fender assembly, the axial force forces the conical body to buckle inward. During this compression cycle, the rubber absorbs kinetic energy from the vessel and converts it into internal strain energy. The unique cone shape dictates a predictable buckling pattern, ensuring steady energy absorption while keeping the reaction forces exerted back onto the vessel hull safely within design limits.
Before the wide adoption of the cone fender, marine engineers relied heavily on cell fenders to protect heavy-duty berths. While cell fenders offered excellent vertical load support, they suffered from reduced efficiency during angular impacts. Marine manufacturers developed the conical profile to overcome these geometric limitations, offering a more stable footprint that provides higher performance-to-weight ratios than legacy designs.
Manufacturers utilize high-grade rubber formulations to ensure these critical safety components survive harsh marine environments for decades.
● Natural Rubber (NR): Delivers superior elasticity, tensile strength, and excellent resistance to mechanical fatigue during repeated compression cycles.
● Synthetic Rubber Blends (SBR/BR): Added to enhance resistance to ozone degradation, ultraviolet radiation, and extreme temperature fluctuations.

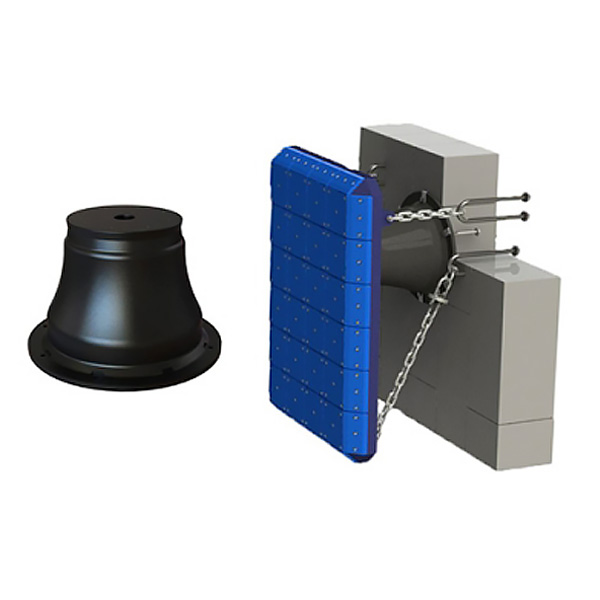

A complete cone fender system relies on a large frontal steel panel bolted directly to the head of the rubber cone. This panel distributes the concentrated reaction forces across a wider area of the ship hull. Ultra-High-Molecular-Weight Polyethylene (UHMW-PE) face pads cover the exterior of the steel panel, creating a slick, low-friction surface that allows vessels to slide smoothly along the berth without tearing the underlying structure.
Note: Proper selection of UHMW-PE pad thickness is critical, as face pad wear is the leading cause of friction-induced stress on the mounting bolts.
Engineers categorize these systems by their height and material hardness ratings. Standard sizes range from 300 mm to over 2,000 mm in height. Manufacturers typically offer multiple rubber compounds for each size, classified as High, Standard, or Low reaction types, allowing port designers to select precise performance characteristics for their specific quay walls.
Fender Height (mm) | Design Deflection (%) | Energy Absorption Trend | Typical Application |
300 – 600 | 72% | Medium-Low | Tugboat berths, small cargo quays |
700 – 1200 | 72% | Medium-High | Container terminals, bulk berths |
1300 – 2000+ | 72% | Ultra-High | VLCC berths, LNG platforms |
The primary engineering benefit of a cone fender is its unmatched efficiency. It achieves maximum energy absorption while generating remarkably low reaction forces. This characteristic protects delicate dock walls from structural cracking and prevents thin-walled vessel hulls from buckling during aggressive mooring maneuvers.
Real-world berthing operations rarely happen at a perfect 90-degree angle to the quay wall. Traditional marine fenders experience a severe drop in energy absorption when compressed obliquely. The symmetrical, tapered profile of the cone fender allows it to handle large berthing angles up to 10 degrees or more with minimal performance loss, providing a reliable safety margin during rough sea conditions.
While older cell systems reach their safe design limits around 52% to 55% compression, a modern cone fender accommodates a rated deflection of up to 72%. This extra travel distance gives the system a greater capacity to cushion heavy impacts, absorbing more kinetic energy before reaching its solid compression limit.
As tides shift and waves rock a moored vessel, longitudinal forces create severe shear and twisting motions across the face of the fender. The wide, circular mounting base of the cone fender provides excellent structural stability against these multi-directional loads. It resists tearing and twisting far better than narrower arch or leg fender variants.
Offshore oil and gas terminals operate in exposed waters subject to strong currents and massive tidal shifts. The structural stability and angular performance of the cone fender make it the preferred choice for these remote facilities. They safely absorb the continuous, unpredictable movements of moored petroleum tankers without failing.
Modern mega-container ships and Very Large Crude Carriers (VLCCs) possess immense displacement mass. These vessels require heavy-duty fendering solutions that can stop massive momentum without destroying the quay infrastructure. Large-scale cone systems provide the concentrated energy capacities needed to handle these giant hulls safely.
Modern passenger cruise ships feature relatively thin hull plating to maximize interior space and reduce vessel weight. They cannot tolerate high, concentrated impact forces. By combining highly sensitive cone units with oversized frontal steel panels, port engineers can reduce localized hull pressure to safe levels, protecting both the luxury liner and the pier.
In open-sea mooring installations, constant ocean swells mean that fenders are under near-continuous dynamic loading. The robust geometry of the cone shape prevents the localized material overheating that often plagues inferior fender profiles under high-frequency cycling, making them highly reliable in remote marine environments.
Though they look somewhat similar, the performance gap between these two systems is significant. At standard design deflection, a cone fender absorbs roughly 15% to 20% more energy than a cell fender of the equivalent height and rubber grade. Furthermore, when analyzing performance at an angle, the cone variant maintains its efficiency curve far better than its cell predecessor.
Arch fenders are simple, one-piece rubber units well-suited for smaller craft and tighter budgets, but they lack the sheer energy capacity of a cone system. A cone fender installation utilizes a multi-component design that provides superior deflection and much lower hull pressure, making it the clear choice for major commercial ports handling large vessels.
Procuring a full cone fender system involves a higher initial investment due to the complex engineering, structural steel panels, and advanced polymer pads required. However, when evaluating the total cost of ownership over a twenty-year period, the cone system proves highly economical. It lowers maintenance costs, minimizes downtime, and prevents expensive repairs to the port infrastructure.
Securing a heavy cone fender requires a robust anchoring pattern drilled or cast directly into the concrete quay. Installers use high-tensile, corrosion-resistant anchor bolts arranged in a precise circular configuration. These bolts must handle both the tension forces created when the fender rebounds and the massive downward weight of the steel panel assembly.
Because the frontal steel panel and UHMW-PE pads add significant dead weight to the front of the rubber cone, heavy installations require dedicated chain systems. Weight support chains suspend the steel panel from the concrete deck to prevent the rubber body from sagging. Meanwhile, tension and shear chains limit excessive movement during angular impacts, protecting the rubber core from over-deflection.
Many port authorities need to upgrade their existing berths to accommodate larger modern vessels without rebuilding their entire concrete jetty. Engineers can design custom steel adapter plates that match the old bolt footprints of legacy arch or cell systems. This allows the port to mount a high-efficiency cone fender directly onto the old structure, immediately increasing the berth energy rating.
International marine engineering requires strict adherence to the guidelines established by PIANC (The World Association for Waterborne Transport Infrastructure). These standards dictate how manufacturers must test and report energy absorption and reaction force metrics. Legitimate suppliers must provide certified test curves proving their products perform as advertised under standardized laboratory conditions.
During Factory Acceptance Testing (FAT), sample units undergo full-scale compression tests using giant hydraulic presses.
● Constant Velocity Compression: Compresses the fender at a steady, slow rate to map its baseline performance curves.
● Durability Testing: Subjects the elastomer to repeated rapid cycles to verify that the rubber compound does not suffer from internal delamination or permanent structural deformation.
The physical properties of rubber change based on ambient temperatures and the speed at which a ship strikes the dock. Cold temperatures make rubber stiffer, which increases reaction forces. Fast vessel approaches also alter the compression dynamics. Manufacturers apply specific mathematical correction factors to their standard performance data to guarantee the system remains safe under real-world operating conditions.
Port authorities should establish a scheduled maintenance program to inspect their fendering assets at least once every six months. A standard inspection checklist should include:
● Checking the rubber cone body for deep cuts, ozone cracking, or permanent deformation.
● Inspecting all anchor bolts and chain shackles for signs of severe marine corrosion or loosening.
● Measuring the remaining thickness of the UHMW-PE face pads to ensure they have not worn down to the steel panel bolts.
● Verifying that weight support and tension chains maintain the correct amount of slack.
If an operator notices localized cracking near the base of the cone, it often indicates excessive shear stress caused by a broken tension chain. Accelerated wear on the UHMW-PE pads suggests high amounts of silt or rough hull surfaces scraping the berth. Replacing worn face pads early prevents metal-on-metal contact, preserving both the vessel hull and the internal steel frame from costly damage.
A premium, properly maintained cone fender system can easily achieve an operational lifespan exceeding 20 years. To maximize longevity, port operators should keep marine growth cleared from around the rubber base and ensure that chain assemblies remain properly adjusted. Investing in high-quality UV-stabilized rubber compounds during the initial procurement phase pays massive dividends by preventing premature environmental degradation.
The modern cone fender represents the industry gold standard for port infrastructure protection, offering unmatched geometric design and exceptional angular resilience. Specifying high-efficiency fendering systems is a vital strategy for future-proofing marine terminals against growing global vessel sizes. For elite marine engineering solutions, CMR manufactures premium-grade marine systems designed to maximize energy absorption and safeguard high-traffic commercial berths worldwide.
A: A cone fender is a high-efficiency marine rubber fender featuring a tapered, conical body designed to maximize energy absorption during vessel berthing.
A: A cone fender provides up to 72% deflection, superior angular performance, and higher energy absorption than an equivalent cell variant.
A: With proper maintenance, high-quality materials, and regular inspection, a premium cone fender system can easily last over 20 years.
A: Yes, large cone fender systems use weight and tension chains to support the heavy frontal steel panel and control shear stress.
